Agricultural Cylinders

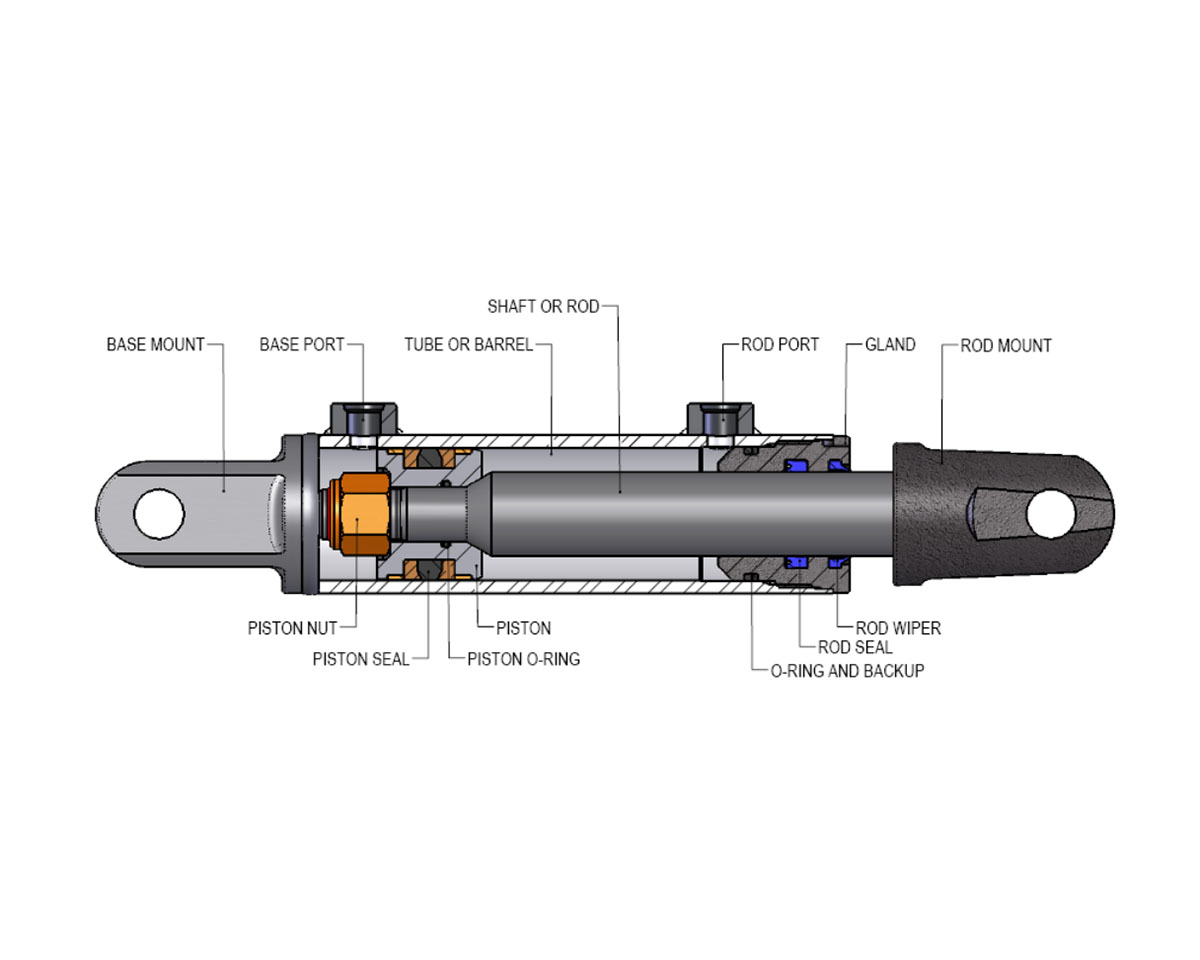

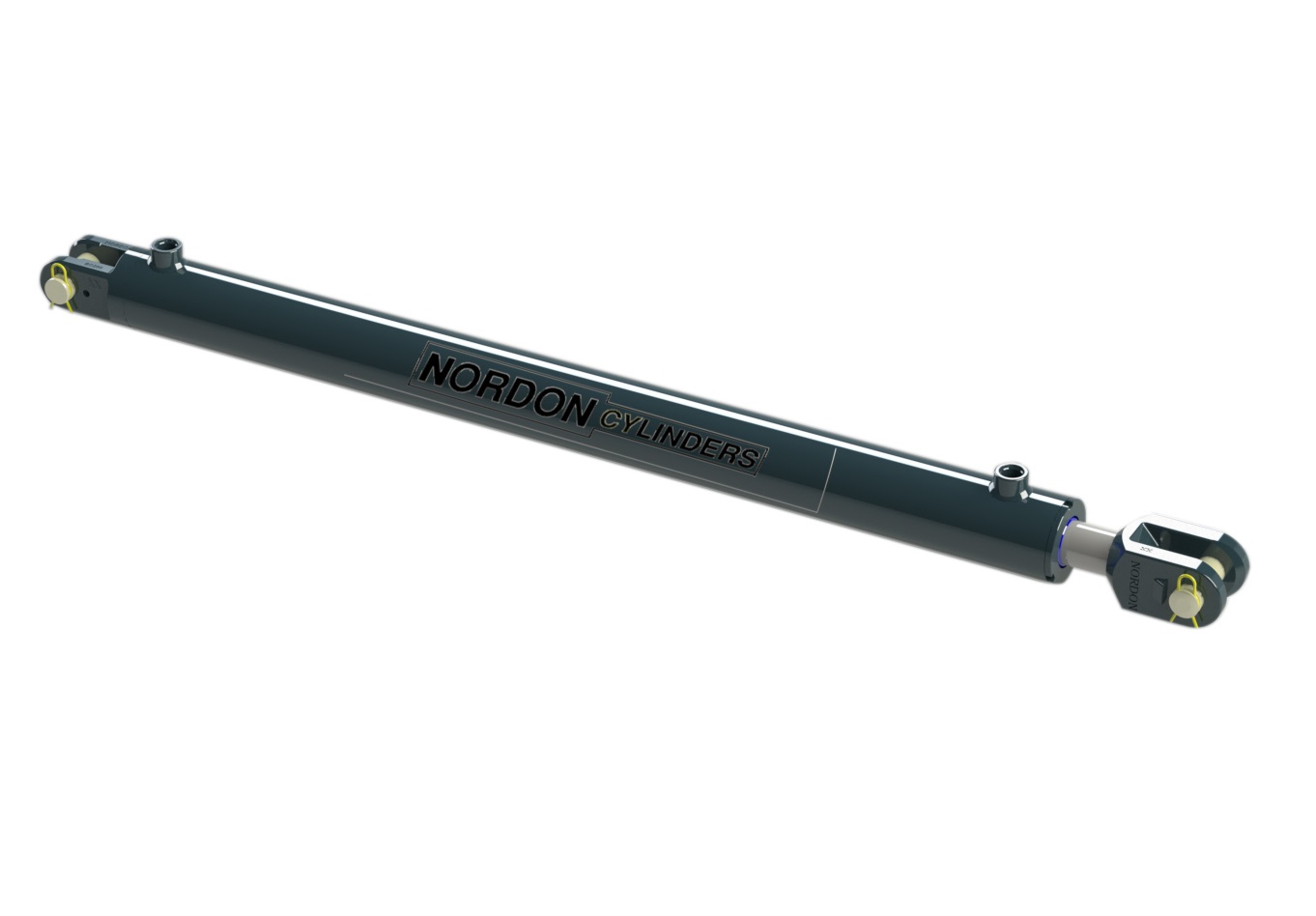

Nordon NA Series cylinders are built for performance and durability, with a wide range of standard options to select from. These agricultural cylinders are designed to handle harsh environmental conditions, preserve a long life-cycle and all conform to ASAE Standards. Click here to browse our range of seal kits suited to the Nordon NA Series.

Overview

Bore: 1.5" to 5" (in 1/2" increments) Stroke: 4" to 48" Pressure: 200 bar Speed: 0.25 mtr per sec Gland: Internal thread Mounts: Female and Male (both ends)

Features >

Dimensions >

Drawings >

Attachment	Size
NA15AR07-C.PDF	93.96 KB
NA15BR07-C.PDF	110.54 KB
NA20AR10-C.PDF	119.85 KB
NA20AR12-C.PDF	110.48 KB
NA20BR12-C.PDF	97.98 KB
NA20BR10-C.PDF	137.18 KB
NA25AR12-C.PDF	105.69 KB
NA25AR15-C.PDF	113.84 KB
NA25BR12-C.pdf	117.39 KB
NA25BR15-C.pdf	190.7 KB
NA30AR15-C.PDF	112.98 KB
NA30BR15-C.PDF	136.09 KB
NA35AR17-C.PDF	107.08 KB
NA35BR17-C.pdf	228.73 KB
NA40AR20-C.PDF	103.09 KB
NA40BR20-C.PDF	103.71 KB
NA45AR20-C.PDF	108.99 KB
NA45BR20-C.pdf	266.16 KB
NA50AR22-C.PDF	107.79 KB
NA50BR22-C.PDF	109.6 KB

1.50″ Bore 3/4 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA15A02	2.00	9 1/4	235	9/16	1/2	AUD$427.00 ex. GST	Quantity *
NA15A04	4.00	11 1/4	286	9/16	1/2	AUD$498.00 ex. GST	Quantity *
NA15A06	6.00	13 1/4	336	9/16	1/2	AUD$498.00 ex. GST	Quantity *
NA15A08	8.00	15 1/4	387	9/16	1/2	AUD$498.00 ex. GST	Quantity *
NA15A10	10.00	17 1/4	438	9/16	1/2	AUD$530.00 ex. GST	Quantity *
NA15A12	12.00	19 1/4	489	9/16	1/2	AUD$546.00 ex. GST	Quantity *
NA15A16	16.00	23 1/4	590	9/16	1/2	AUD$604.00 ex. GST	Quantity *
NA15A18	18.00	25 1/4	641	9/16	1/2	AUD$611.00 ex. GST	Quantity *
NA15A20	20.00	27 1/4	692	9/16	1/2	AUD$652.00 ex. GST	Quantity *
NA15A24	24.00	31 1/4	794	9/16	1/2	AUD$677.00 ex. GST	Quantity *

1.50″ Bore 3/4 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA15A02

2.00

9 1/4

235

9/16

1/2

AUD$427.00 ex. GST

NA15A04

4.00

11 1/4

286

9/16

1/2

AUD$498.00 ex. GST

NA15A06

6.00

13 1/4

336

9/16

1/2

AUD$498.00 ex. GST

NA15A08

8.00

15 1/4

387

9/16

1/2

AUD$498.00 ex. GST

NA15A10

10.00

17 1/4

438

9/16

1/2

AUD$530.00 ex. GST

NA15A12

12.00

19 1/4

489

9/16

1/2

AUD$546.00 ex. GST

NA15A16

16.00

23 1/4

590

9/16

1/2

AUD$604.00 ex. GST

NA15A18

18.00

25 1/4

641

9/16

1/2

AUD$611.00 ex. GST

NA15A20

20.00

27 1/4

692

9/16

1/2

AUD$652.00 ex. GST

NA15A24

24.00

31 1/4

794

9/16

1/2

AUD$677.00 ex. GST

2.00″ Bore 1 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA20A04R10	4.00	13 1/2	343	9/16	3/4	AUD$448.00 ex. GST	Quantity *
NA20A06R10	6.00	15 1/2	393	9/16	3/4	AUD$457.00 ex. GST	Quantity *
NA20A08R10	8.00	17 1/2	444	9/16	3/4	AUD$464.00 ex. GST	Quantity *
NA20A10R10	10.00	19 1/2	495	9/16	3/4	AUD$505.00 ex. GST	Quantity *
NA20A12R10	12.00	21 1/2	546	9/16	3/4	AUD$530.00 ex. GST	Quantity *
NA20A16R10	16.00	25 1/2	647	9/16	3/4	AUD$587.00 ex. GST	Quantity *
NA20A18R10	18.00	27 1/2	698	9/16	3/4	AUD$604.00 ex. GST	Quantity *
NA20A20R10	20.00	29 1/2	749	9/16	3/4	AUD$620.00 ex. GST	Quantity *
NA20A24R10	24.00	33 1/2	851	9/16	3/4	AUD$684.00 ex. GST	Quantity *

2.00″ Bore 1 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA20A04R10

4.00

13 1/2

343

9/16

3/4

AUD$448.00 ex. GST

NA20A06R10

6.00

15 1/2

393

9/16

3/4

AUD$457.00 ex. GST

NA20A08R10

8.00

17 1/2

444

9/16

3/4

AUD$464.00 ex. GST

NA20A10R10

10.00

19 1/2

495

9/16

3/4

AUD$505.00 ex. GST

NA20A12R10

12.00

21 1/2

546

9/16

3/4

AUD$530.00 ex. GST

NA20A16R10

16.00

25 1/2

647

9/16

3/4

AUD$587.00 ex. GST

NA20A18R10

18.00

27 1/2

698

9/16

3/4

AUD$604.00 ex. GST

NA20A20R10

20.00

29 1/2

749

9/16

3/4

AUD$620.00 ex. GST

NA20A24R10

24.00

33 1/2

851

9/16

3/4

AUD$684.00 ex. GST

2.00″ Bore 1 1/4 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA20A04R12	4.00	16 1/4	413	9/16	1	AUD$473.00 ex. GST	Quantity *
NA20A06R12	6.00	18 1/4	463	9/16	1	AUD$473.00 ex. GST	Quantity *
NA20A08R12	8.00	20 1/4	514	9/16	1	AUD$489.00 ex. GST	Quantity *
NA20A10R12	10.00	22 1/4	565	9/16	1	AUD$521.00 ex. GST	Quantity *
NA20A12R12	12.00	24 1/4	616	9/16	1	AUD$530.00 ex. GST	Quantity *
NA20A16R12	16.00	28 1/4	717	9/16	1	AUD$604.00 ex. GST	Quantity *
NA20A18R12	18.00	30 1/4	768	9/16	1	AUD$620.00 ex. GST	Quantity *
NA20A20R12	20.00	32 1/4	819	9/16	1	AUD$636.00 ex. GST	Quantity *
NA20A24R12	24.00	36 1/4	921	9/16	1	AUD$701.00 ex. GST	Quantity *
NA20A30R12	30.00	42 1/4	1073	9/16	1	AUD$774.00 ex. GST	Quantity *
NA20A36R12	36.00	48 1/4	1225	9/16	1	AUD$847.00 ex. GST	Quantity *
NA20A48R12	48.00	60 1/4	1530	9/16	1	AUD$962.00 ex. GST	Quantity *

2.00″ Bore 1 1/4 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA20A04R12

4.00

16 1/4

413

9/16

AUD$473.00 ex. GST

NA20A06R12

6.00

18 1/4

463

9/16

AUD$473.00 ex. GST

NA20A08R12

8.00

20 1/4

514

9/16

AUD$489.00 ex. GST

NA20A10R12

10.00

22 1/4

565

9/16

AUD$521.00 ex. GST

NA20A12R12

12.00

24 1/4

616

9/16

AUD$530.00 ex. GST

NA20A16R12

16.00

28 1/4

717

9/16

AUD$604.00 ex. GST

NA20A18R12

18.00

30 1/4

768

9/16

AUD$620.00 ex. GST

NA20A20R12

20.00

32 1/4

819

9/16

AUD$636.00 ex. GST

NA20A24R12

24.00

36 1/4

921

9/16

AUD$701.00 ex. GST

NA20A30R12

30.00

42 1/4

1073

9/16

AUD$774.00 ex. GST

NA20A36R12

36.00

48 1/4

1225

9/16

AUD$847.00 ex. GST

NA20A48R12

48.00

60 1/4

1530

9/16

AUD$962.00 ex. GST

2.50″ Bore 1 1/2 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA25A04R15	4.00	16 1/4	413	3/4	1	AUD$489.60 ex. GST	Quantity *
NA25A06R15	6.00	18 1/4	463	3/4	1	AUD$489.00 ex. GST	Quantity *
NA25A08R15	8.00	20 1/4	514	3/4	1	AUD$489.00 ex. GST	Quantity *
NA25A10R15	10.00	22 1/4	565	3/4	1	AUD$531.00 ex. GST	Quantity *
NA25A12R15	12.00	24 1/4	616	3/4	1	AUD$546.00 ex. GST	Quantity *
NA25A16R15	16.00	28 1/4	717	3/4	1	AUD$620.00 ex. GST	Quantity *
NA25A18R15	18.00	30 1/4	768	3/4	1	AUD$656.00 ex. GST	Quantity *
NA25A20R15	20.00	32 1/4	819	3/4	1	AUD$672.00 ex. GST	Quantity *
NA25A24R15	24.00	36 1/4	921	3/4	1	AUD$701.00 ex. GST	Quantity *
NA25A30R15	30.00	42 1/4	1073	3/4	1	AUD$882.00 ex. GST	Quantity *
NA25A36R15	36.00	48 1/4	1225	3/4	1	AUD$971.00 ex. GST	Quantity *
NA25A48R15	48.00	60 1/4	1530	3/4	1	AUD$1,141.00 ex. GST	Quantity *

2.50″ Bore 1 1/2 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA25A04R15

4.00

16 1/4

413

3/4

AUD$489.60 ex. GST

NA25A06R15

6.00

18 1/4

463

3/4

AUD$489.00 ex. GST

NA25A08R15

8.00

20 1/4

514

3/4

AUD$489.00 ex. GST

NA25A10R15

10.00

22 1/4

565

3/4

AUD$531.00 ex. GST

NA25A12R15

12.00

24 1/4

616

3/4

AUD$546.00 ex. GST

NA25A16R15

16.00

28 1/4

717

3/4

AUD$620.00 ex. GST

NA25A18R15

18.00

30 1/4

768

3/4

AUD$656.00 ex. GST

NA25A20R15

20.00

32 1/4

819

3/4

AUD$672.00 ex. GST

NA25A24R15

24.00

36 1/4

921

3/4

AUD$701.00 ex. GST

NA25A30R15

30.00

42 1/4

1073

3/4

AUD$882.00 ex. GST

NA25A36R15

36.00

48 1/4

1225

3/4

AUD$971.00 ex. GST

NA25A48R15

48.00

60 1/4

1530

3/4

AUD$1,141.00 ex. GST

2.50″ Bore 1 1/4 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA25A08R12	8.00	20 1/4	514	3/4	1	AUD$473.00 ex. GST	Quantity *
NA25A10R12	10.00	22 1/4	565	3/4	1	AUD$521.00 ex. GST	Quantity *
NA25A12R12	12.00	24 1/4	616	3/4	1	AUD$538.00 ex. GST	Quantity *

2.50″ Bore 1 1/4 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA25A08R12

8.00

20 1/4

514

3/4

AUD$473.00 ex. GST

NA25A10R12

10.00

22 1/4

565

3/4

AUD$521.00 ex. GST

NA25A12R12

12.00

24 1/4

616

3/4

AUD$538.00 ex. GST

2.50″ Bore 1 1/2 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA25A42R15	42.00	54 1/4	1378	3/4	1	AUD$1,109.00 ex. GST	Quantity *

2.50″ Bore 1 1/2 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA25A42R15

42.00

54 1/4

1378

3/4

AUD$1,109.00 ex. GST

3.00″ Bore 1 1/2 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA30A06	6.00	18 1/4	463	3/4	1	AUD$562.00 ex. GST	Quantity *
NA30A08	8.00	20 1/4	514	3/4	1	AUD$562.00 ex. GST	Quantity *
NA30A10	10.00	22 1/4	565	3/4	1	AUD$620.00 ex. GST	Quantity *
NA30A16	16.00	28 1/4	717	3/4	1	AUD$734.00 ex. GST	Quantity *
NA30A18	18.00	30 1/4	768	3/4	1	AUD$758.00 ex. GST	Quantity *
NA30A20	20.00	32 1/4	819	3/4	1	AUD$808.00 ex. GST	Quantity *
NA30A24	24.00	36 1/4	921	3/4	1	AUD$856.00 ex. GST	Quantity *
NA30A30	30.00	42 1/4	1073	3/4	1	AUD$937.00 ex. GST	Quantity *
NA30A36	36.00	48 1/4	1225	3/4	1	AUD$1,027.00 ex. GST	Quantity *
NA30A48	48.00	60 1/4	1530	3/4	1	AUD$1,223.00 ex. GST	Quantity *

3.00″ Bore 1 1/2 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA30A06

6.00

18 1/4

463

3/4

AUD$562.00 ex. GST

NA30A08

8.00

20 1/4

514

3/4

AUD$562.00 ex. GST

NA30A10

10.00

22 1/4

565

3/4

AUD$620.00 ex. GST

NA30A16

16.00

28 1/4

717

3/4

AUD$734.00 ex. GST

NA30A18

18.00

30 1/4

768

3/4

AUD$758.00 ex. GST

NA30A20

20.00

32 1/4

819

3/4

AUD$808.00 ex. GST

NA30A24

24.00

36 1/4

921

3/4

AUD$856.00 ex. GST

NA30A30

30.00

42 1/4

1073

3/4

AUD$937.00 ex. GST

NA30A36

36.00

48 1/4

1225

3/4

AUD$1,027.00 ex. GST

NA30A48

48.00

60 1/4

1530

3/4

AUD$1,223.00 ex. GST

3.00″ Bore 1 1/2 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA30A12	12.00	24 1/4	616	3/4	1	AUD$652.00 ex. GST	Quantity *

3.00″ Bore 1 1/2 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA30A12

12.00

24 1/4

616

3/4

AUD$652.00 ex. GST

3.50″ Bore 1 3/4 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA35A08	8.00	20 1/4	514	3/4	1	AUD$701.00 ex. GST	Quantity *
NA35A12	12.00	24 1/4	616	3/4	1	AUD$799.00 ex. GST	Quantity *
NA35A16	16.00	28 1/4	717	3/4	1	AUD$913.00 ex. GST	Quantity *
NA35A18	18.00	30 1/4	768	3/4	1	AUD$953.00 ex. GST	Quantity *
NA35A20	20.00	32 1/4	819	3/4	1	AUD$1,019.00 ex. GST	Quantity *
NA35A24	24.00	36 1/4	921	3/4	1	AUD$1,084.00 ex. GST	Quantity *
NA35A36	36.00	48 1/4	1225	3/4	1	AUD$1,313.00 ex. GST	Quantity *
NA35A48	48.00	60 1/4	1530	3/4	1	AUD$1,598.00 ex. GST	Quantity *

3.50″ Bore 1 3/4 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA35A08

8.00

20 1/4

514

3/4

AUD$701.00 ex. GST

NA35A12

12.00

24 1/4

616

3/4

AUD$799.00 ex. GST

NA35A16

16.00

28 1/4

717

3/4

AUD$913.00 ex. GST

NA35A18

18.00

30 1/4

768

3/4

AUD$953.00 ex. GST

NA35A20

20.00

32 1/4

819

3/4

AUD$1,019.00 ex. GST

NA35A24

24.00

36 1/4

921

3/4

AUD$1,084.00 ex. GST

NA35A36

36.00

48 1/4

1225

3/4

AUD$1,313.00 ex. GST

NA35A48

48.00

60 1/4

1530

3/4

AUD$1,598.00 ex. GST

4.00″ Bore 2 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA40A08R20	8.00	20 1/4	514	7/8	1	AUD$840.00 ex. GST	Quantity *
NA40A12R20	12.00	24 1/4	616	7/8	1	AUD$930.00 ex. GST	Quantity *
NA40A16R20	16.00	28 1/4	717	7/8	1	AUD$1,044.00 ex. GST	Quantity *
NA40A18R20	18.00	30 1/4	768	7/8	1	AUD$1,100.00 ex. GST	Quantity *
NA40A20R20	20.00	32 1/4	819	7/8	1	AUD$1,166.00 ex. GST	Quantity *
NA40A24R20	24.00	36 1/4	921	7/8	1	AUD$1,263.00 ex. GST	Quantity *
NA40A36R20	36.00	48 1/4	1225	7/8	1	AUD$1,549.00 ex. GST	Quantity *
NA40A48R20	48.00	60 1/4	1530	7/8	1	AUD$1,777.00 ex. GST	Quantity *

4.00″ Bore 2 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA40A08R20

8.00

20 1/4

514

7/8

AUD$840.00 ex. GST

NA40A12R20

12.00

24 1/4

616

7/8

AUD$930.00 ex. GST

NA40A16R20

16.00

28 1/4

717

7/8

AUD$1,044.00 ex. GST

NA40A18R20

18.00

30 1/4

768

7/8

AUD$1,100.00 ex. GST

NA40A20R20

20.00

32 1/4

819

7/8

AUD$1,166.00 ex. GST

NA40A24R20

24.00

36 1/4

921

7/8

AUD$1,263.00 ex. GST

NA40A36R20

36.00

48 1/4

1225

7/8

AUD$1,549.00 ex. GST

NA40A48R20

48.00

60 1/4

1530

7/8

AUD$1,777.00 ex. GST

5.00″ Bore 2 1/4 Rod
Part Number	Stroke	Closed Centre (in)	Closed Centre (mm)	UNO Port (in)	Pin Diameter (in)	Price
NA50A08R22	8.00	20 1/4	514	1.1/16	1 1/4	AUD$1,304.00 ex. GST	Quantity *
NA50A12R22	12.00	12 1/4	616	1.1/16	1 1/4	AUD$1,467.00 ex. GST	Quantity *
NA50A16R22	16.00	28 1/4	717	1.1/16	1 1/4	AUD$1,630.00 ex. GST	Quantity *
NA50A18R22	18.00	30 1/4	768	1.1/16	1 1/4	AUD$1,704.00 ex. GST	Quantity *
NA50A24R22	24.00	36 1/4	921	1.1/16	1 1/4	AUD$1,933.00 ex. GST	Quantity *
NA50A30R22	30.00	42 1/4	1073	1.1/16	1 1/4	AUD$2,096.00 ex. GST	Quantity *
NA50A36R22	36.00	48 1/4	1225	1.1/16	1 1/4	AUD$2,332.00 ex. GST	Quantity *
NA50A48R22	48.00	60 1/4	1530	1.1/16	1 1/4	AUD$2,804.00 ex. GST	Quantity *

5.00″ Bore 2 1/4 Rod

Part Number

Stroke

Closed Centre (in)

Closed Centre (mm)

UNO Port (in)

Pin Diameter (in)

Price

NA50A08R22

8.00

20 1/4

514

1.1/16

1 1/4

AUD$1,304.00 ex. GST

NA50A12R22

12.00

12 1/4

616

1.1/16

1 1/4

AUD$1,467.00 ex. GST

NA50A16R22

16.00

28 1/4

717

1.1/16

1 1/4

AUD$1,630.00 ex. GST

NA50A18R22

18.00

30 1/4

768

1.1/16

1 1/4

AUD$1,704.00 ex. GST

NA50A24R22

24.00

36 1/4

921

1.1/16

1 1/4

AUD$1,933.00 ex. GST

NA50A30R22

30.00

42 1/4

1073

1.1/16

1 1/4

AUD$2,096.00 ex. GST

NA50A36R22

36.00

48 1/4

1225

1.1/16

1 1/4

AUD$2,332.00 ex. GST

NA50A48R22

48.00

60 1/4

1530

1.1/16

1 1/4

Bore Diameter	1.5” 38.1	2” 50.8	2” 50.8	2.5” 63.5	2.5” 63.5	3” 76.2	3.5” 88.9	4” 101.6
A	48	60.3	60.3	73	73	88.9	101.6	114.3
C	12	12	13	13	13	13	13	20
D	22	22	29	29	29	29	29	31.8
F (Ref.)	29	31	38	38	38	38	38	38
G	43	49	53	53	53	61	65	64
H	104	126	133	143	143	150	163	168
J	¾’ 19.05	1” 25.4	1.25” 31.75	1.25” 31.75	1.5” 38.1	1.5” 38.1	1.75” 44.45	2” 50.8
K	14	8	52	42	42	35	8	3
KK	5/8”	3/4”	1.1/8”	1.1/8”	1.1/8”	1.1/8”	1. ½”	1. ½”
L	9/16” UNO	9/16” UNO	9/16” UNO	¾” UNO	¾” UNO	¾” UNO	¾’ UNO	7/8” UNO
CA	½” 12.7	3/4” 19.05	1” 25.4	1” 25.4	1” 25.4	1” 25.4	1” 25.4	1” 25.4
CB	38	64	64	64	64	64	70	70
CC	40	60	75	75	75	75	85	85
CD	10	16	16	16	16	16	21.5	21.5
CE	17	28	28	28	28	28	28	28
CEE	17	28	28	28	28	28	28	28
CF	26	45	45	45	45	45	55	55
CG	38	40	40	50	50	50	65	65
CH	10	12	12	16	16	16	20	20
CJ	17	28	28	30	30	30	30	30
CK	26	47	51	51	51	51	55	55
