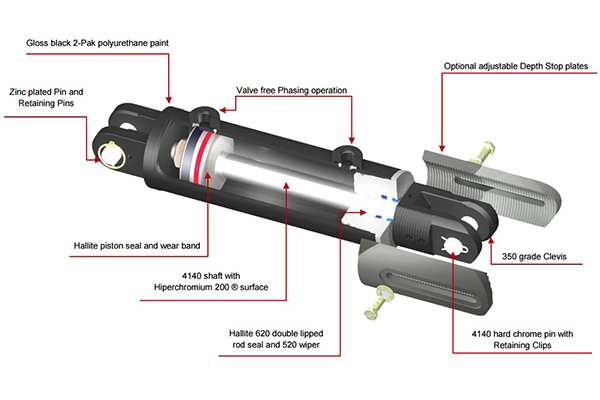

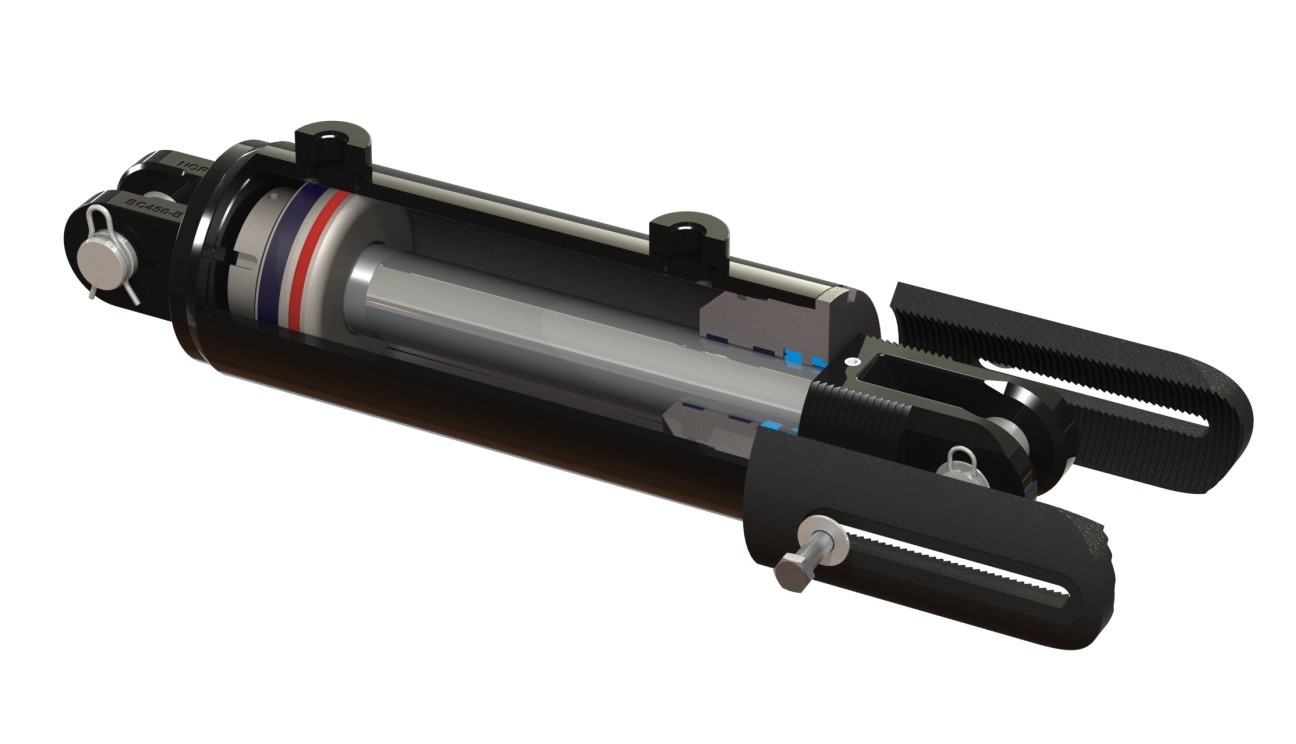

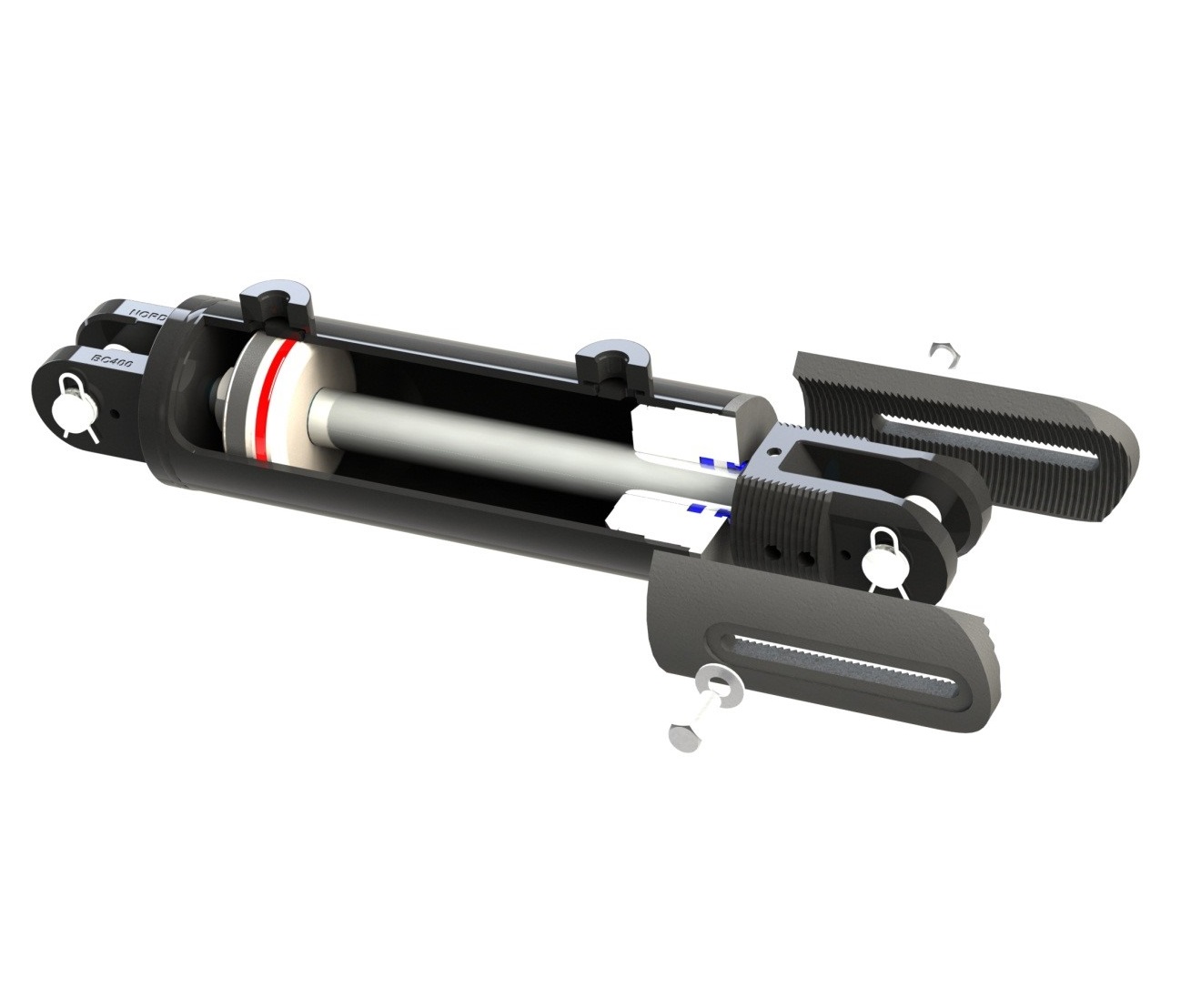

Nordon provides the industry leading Industrial Phasing range of cylinders - the first and still the only roundline cylinder manufactured in Australia. This range is the only industrial cylinder product that offers a complete range of standard mounting and accessories to provide clients with limitless range options.
Overview
Bore: 3" to 5" in 1/4" increments
(Optional Heavy duty 2.5" to 5.5" in 1/2" increments)
Stroke: 8",12",16" and 18", also customer specific on application.
Working Pressure: 200 bar
Maximum Pressure: 300 bar
Speed: 0.25 mtr per sec
Safety Yeild: 3:1 at 200 bar
Gland: Internal thread

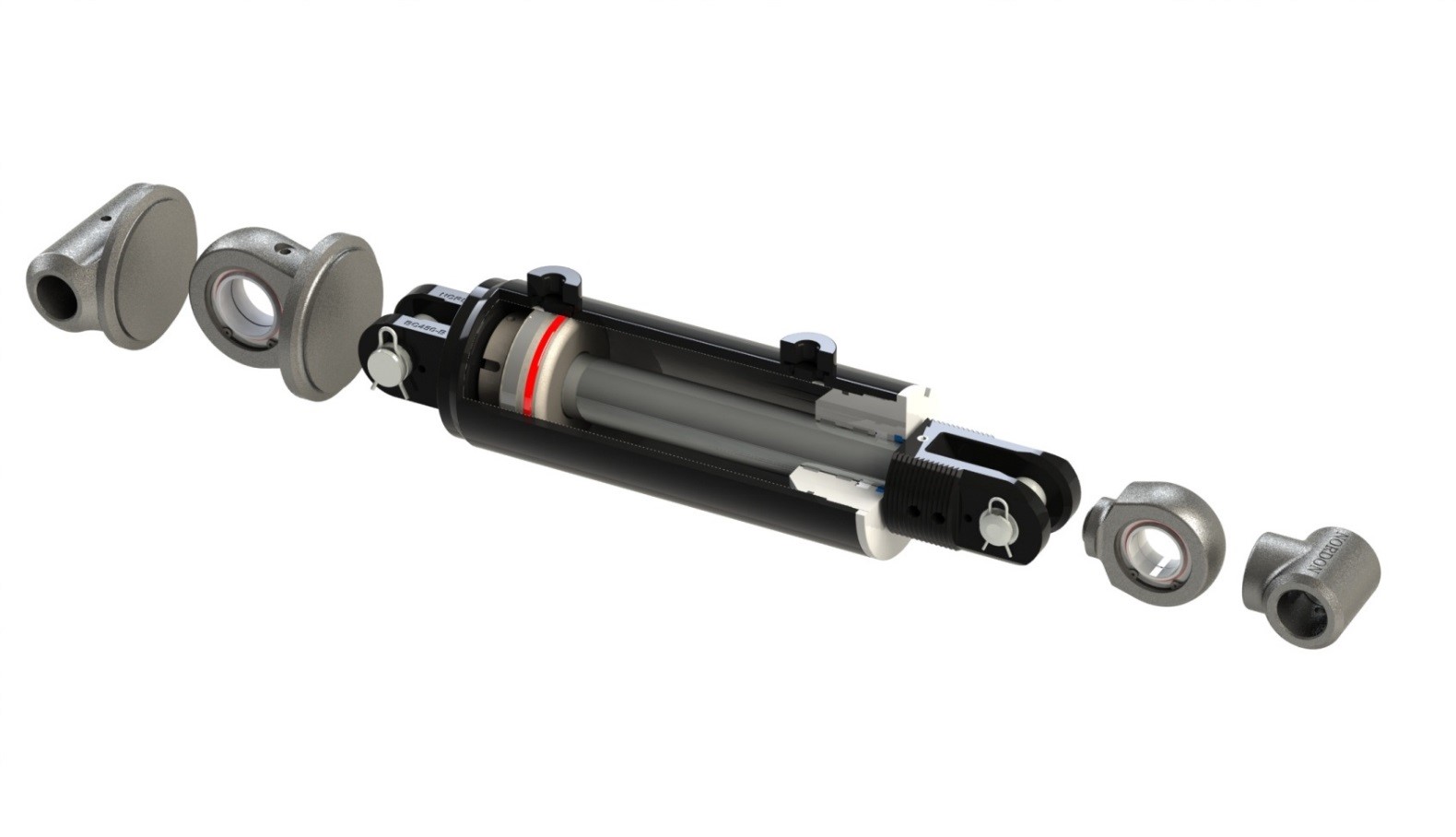

Mounts: Female clevis, pin eye, sphereical bearing, male lug, trunion, NFPA style rectangular flange and customer specified.
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP30A08 | 8.00 | 20 1/4 | 514 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP30A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP325A08 | 8.00 | 20 1/4 | 514 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP325A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP35A08 | 8.00 | 20 1/4 | 514 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP35A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP375A08 | 8.00 | 20 1/4 | 514 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP375A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP40A08 | 8.00 | 20 1/4 | 514 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP40A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP425A08 | 8.00 | 20 1/4 | 514 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP425A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP45A08 | 8.00 | 20 1/4 | 514 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP45A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP475A08 | 8.00 | 20 1/4 | 514 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP475A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
| Part Number | Stroke | Closed Centre (in) | Closed Centre (mm) | UNO Port (in) | Pin Diameter (in) | Price |
|---|---|---|---|---|---|---|
| NAP50A08 | 8.00 | 20 1/4 | 311 | 3/4 | 1 |
Please Enquire for Pricing |
| NAP50A12 | 12.00 | 24 1/4 | 616 | 3/4 | 1 |
Please Enquire for Pricing |
